Sub1 & Sub2 powered bass modules
Slim size. Big bass.
-
WORK WITH VIRTUALLY ANY PORTABLE PA
-
LOW END DOWN TO 40 HZ, (SUB1) AND 37 HZ (SUB2)
-
PAIRS WITH L1 PRO32 FOR A COMPLETE, PORTABLE SYSTEM
-
SLIM RACETRACK DRIVERS: 7"x13" (SUB1) 10"x18" (SUB2) -
SINGLE-CABLE SUBMATCH CONNECTIVITY
-
TAKE UP LESS SPACE IN TRANSPORT AND ONSTAGE
-
STACKABLE, COMBINE UP TO TWO SUBS
-
CARDIOID MODE FOR FOCUSED, DIRECTIONAL BASS
-
INTEGRATED, THREADED POLE MOUNT
Meet the high end of low frequency
Give your songs full impact.
Sub1 and Sub2 powered bass modules combine with virtually any portable PA to deliver low end down to 40 Hz and 37 Hz, respectively. When paired with the Bose L1 Pro32, Sub1 creates a more compact system, while Sub2 plays lower and louder. And both give you bold bass from slim design that goes virtually anywhere.
Racetrack woofers
More bass. Less bulk.
With a unique RaceTrack driver design, Sub1 and Sub2 offer powerful bass and an optimized center of gravity. The driver’s shape allows the physical enclosure of Sub1 and Sub2 to be slimmer without compromising sound. This frees up room in your vehicle and on the stage, and makes every carry in between — home to car, vehicle to venue — much easier.

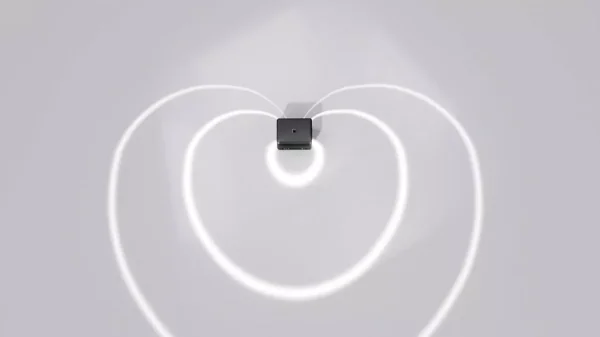

Cardioid mode
Focus the bass where you want it.
Stack two Sub1 or Sub2 subwoofers for even more bass or to unleash Cardioid Mode for focused, directional performance that negates rear-firing bass energy, steers the bass out front, and reduces feedback.

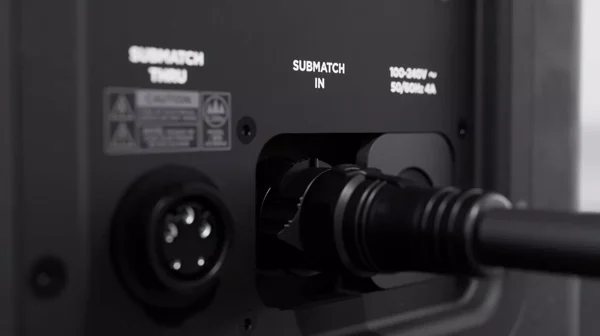

Submatch connectivity
Part of a full system
Sub1 and Sub2 pair seamlessly with the L1 Pro32 via proprietary SubMatch connectivity to form a modular line array system that’s easy to pack, carry, and set up. This single-cable connection makes setup so much easier. It allows the system’s crossover and EQ to automatically calibrate for optimal sound, and — because power and digital audio are passed through the SubMatch cable — you only need a single power outlet. Just plug in your L1 Pro32 and you’re ready to go.
All for that Moment
Big bass onstage. Practical portability everywhere else. Get from parking to performing with ease and from setup to setlist in minutes. With a Sub1 or Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills out your sound.
Watch all the L1 Pro overview videos
Compare L1 Pro systems
L1 Pro8
|
Acoustic Performance |
Generous coverage — C-shaped line array featuring 8 articulating 2″ neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues. |
|
Coverage |
180° H x 40° V |
|
Low Frequency (-3 dB) |
45 Hz |
L1 Pro16
|
Acoustic Performance |
Versatile coverage — J-shaped line array featuring 16 articulated 2″ neodymium drivers; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, and even off to the extreme sides in medium to large venues. |
|
Coverage |
180° H x 0° to -30° V |
|
Low Frequency (-3 dB) |
42 Hz |
L1 Pro32
|
Acoustic Performance |
Uniform coverage — Straight line array, featuring 32 articulated 2″ neodymium drivers; 180-degree horizontal coverage with the most focused vertical coverage pattern and highest SPL over distance in an L1 ever — providing intricate sonic detail, clarity, and consistency, even off to the extreme sides in larger venues. |
|
Coverage |
180° H x 0° V |
|
Low Frequency (-3 dB) |
With Sub1: 40Hz With Sub2: 37 Hz |
