L1 Pro8 Portable Line Array System

Setup Simplicity.
Supreme Clarity.

Get in, set up, and simply perform

The most portable L1 Pro system

The L1 Pro8 is ready whenever you are, enabling easier load-in and faster setup. It offers generous coverage with a C-shaped line array featuring 8 articulated 2″ neodymium drivers. This array delivers 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues like coffee shops and cafes.

The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.

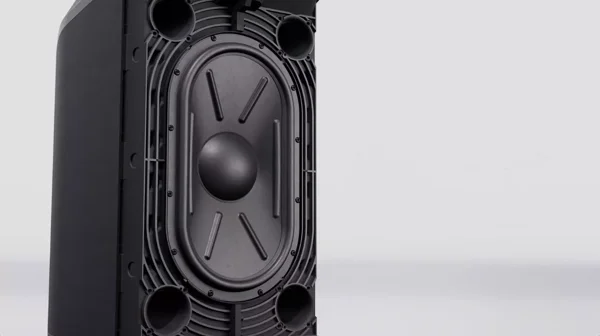

l1 pro8 bass without bulk

Racetrack woofer

Bass without the bulk

An integrated subwoofer with a unique RaceTrack driver design gives you powerful bass, has an optimized center of gravity, and saves a lot of space. This slim 7″ × 13″ driver gives you performance that rivals a conventional 12″ woofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between — home to car, vehicle to venue — much easier.

Built-In Mixer

Mixer onboard… and on your phone

Each L1 Pro system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4″ phantom-powered inputs, 1/4″ and 1/8″ (3.5 mm) aux inputs, plus Bluetooth® streaming capability. Illuminated rotary encoders give you instant access to volume, tone, and reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. And add in even more instruments and other audio sources via dedicated ToneMatch port — one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional).

And with the intuitive Bose Music app, you get complete wireless mixer control too…

l1 pro8 mixer onboard

All for that Moment

Premium sound onstage. Practical portability everywhere else. With an L1 Pro8, you can get from parking to performing in one trip and from setup to setlist in minutes. The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.

l1 pro8 all for that moment

Watch all the L1 Pro overview videos

Learn about the other L1 Pro systems

Compare L1 Pro systems

L1 Pro8 Portable Line Array System

L1 Pro8

Acoustic Performance

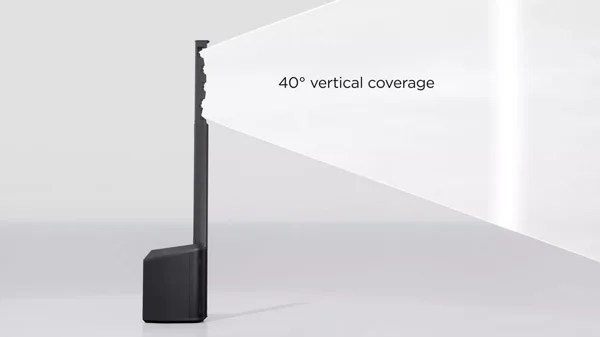

Generous coverage — C-shaped line array featuring 8 articulating 2″ neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues.
Coverage
180° H x 40° V
Low Frequency (-3 dB)
45 Hz
L1 Pro16 Portable Line Array System

L1 Pro16

Acoustic Performance
Versatile coverage — J-shaped line array featuring 16 articulated 2″ neodymium drivers; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, and even off to the extreme sides in medium to large venues.
Coverage
180° H x 0° to -30° V
Low Frequency (-3 dB)
42 Hz
L1 Pro32 Portable Line Array

L1 Pro32

Acoustic Performance
Uniform coverage — Straight line array, featuring 32 articulated 2″ neodymium drivers; 180-degree horizontal coverage with the most focused vertical coverage pattern and highest SPL over distance in an L1 ever — providing intricate sonic detail, clarity, and consistency, even off to the extreme sides in larger venues.
Coverage
180° H x 0° V
Low Frequency (-3 dB)
With Sub1: 40Hz
With Sub2: 37 Hz
