High-output 10-inch performance delivers the power and impact needed for music-forward entertainment spaces in a compact form factor
Bose Professional EMB2S compression driver supports clear vocal presence and tonal consistency for music, live performance, announcements, and KTV/karaoke applications
Rear-ported enclosure design extends low-frequency response for punchy, balanced sound in indoor entertainment environments
90° × 60° rotatable coverage supports flexible horizontal or vertical placement to suit room layouts and system designs

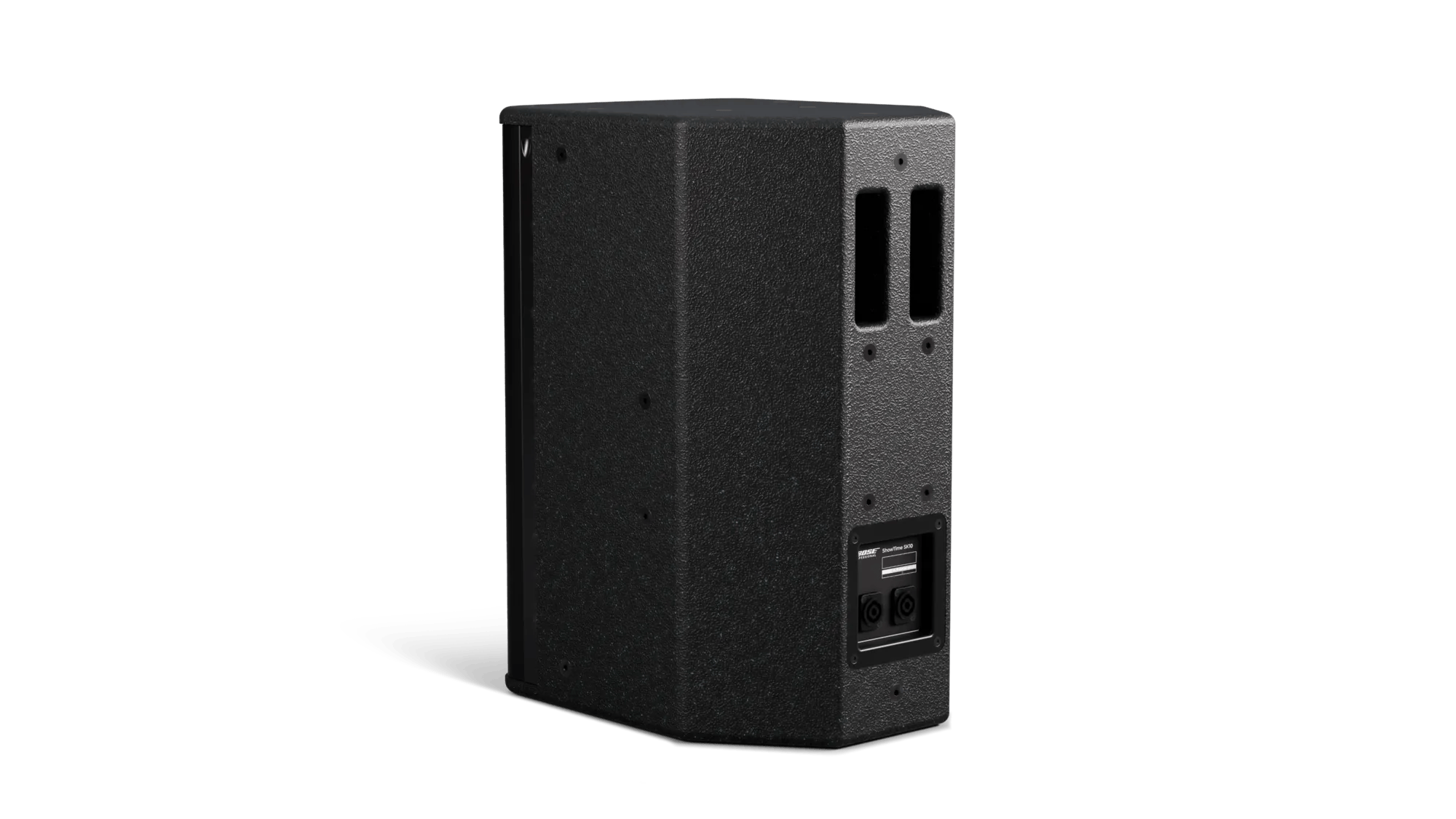

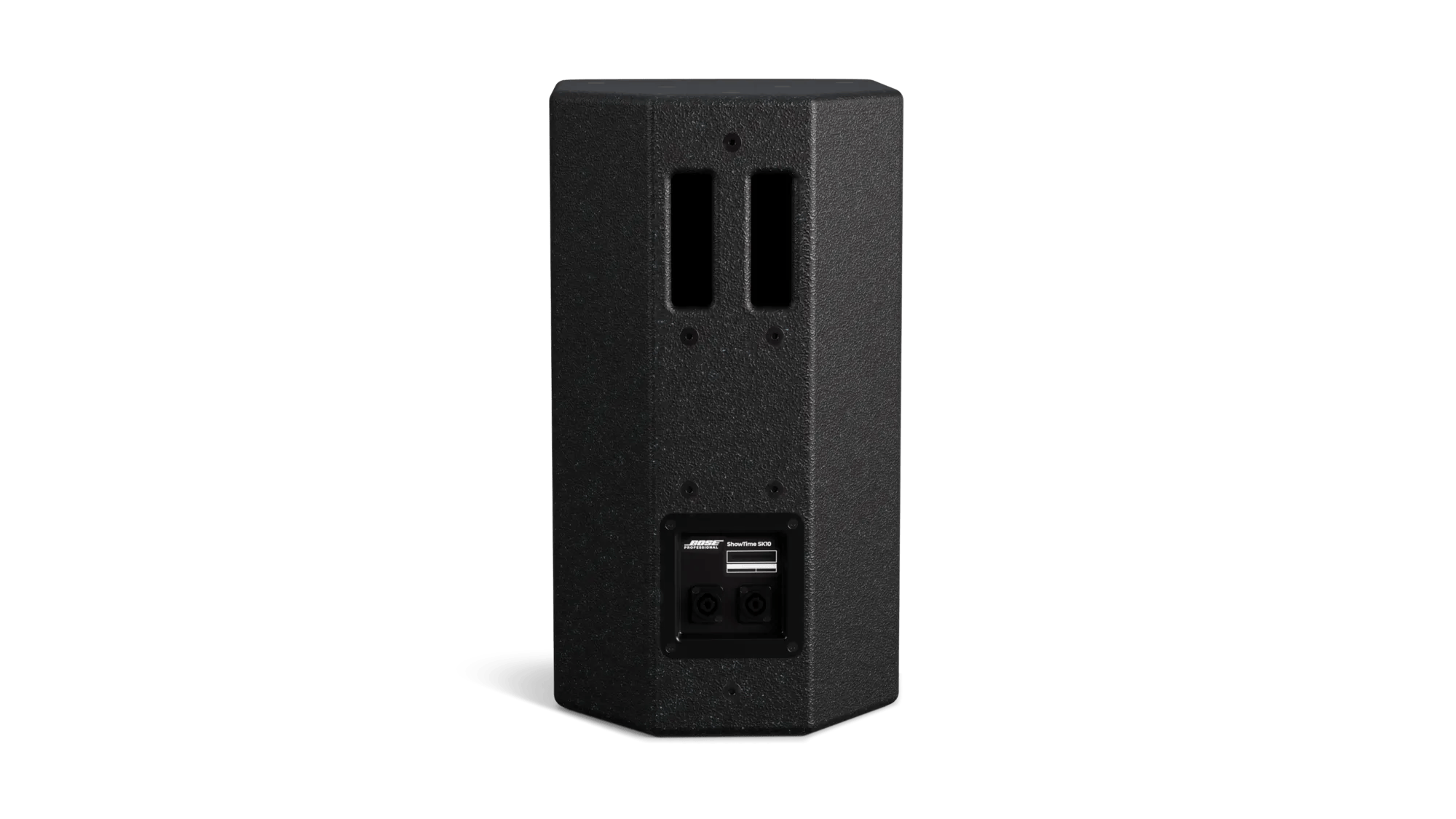

Neutrik® speakON® input and loop-through connectors support secure amplifier connection and simple daisy-chaining across distributed loudspeaker systems

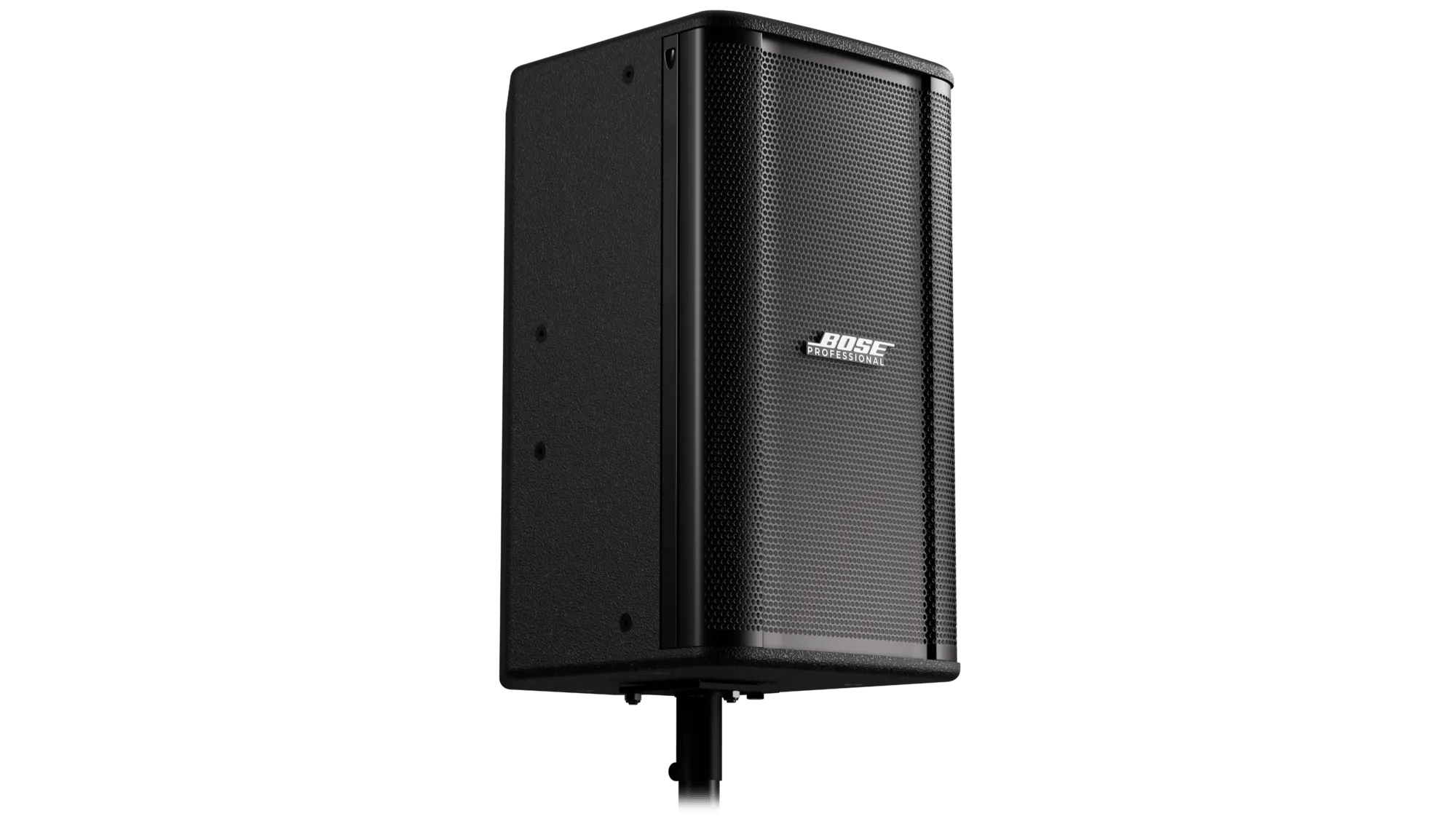

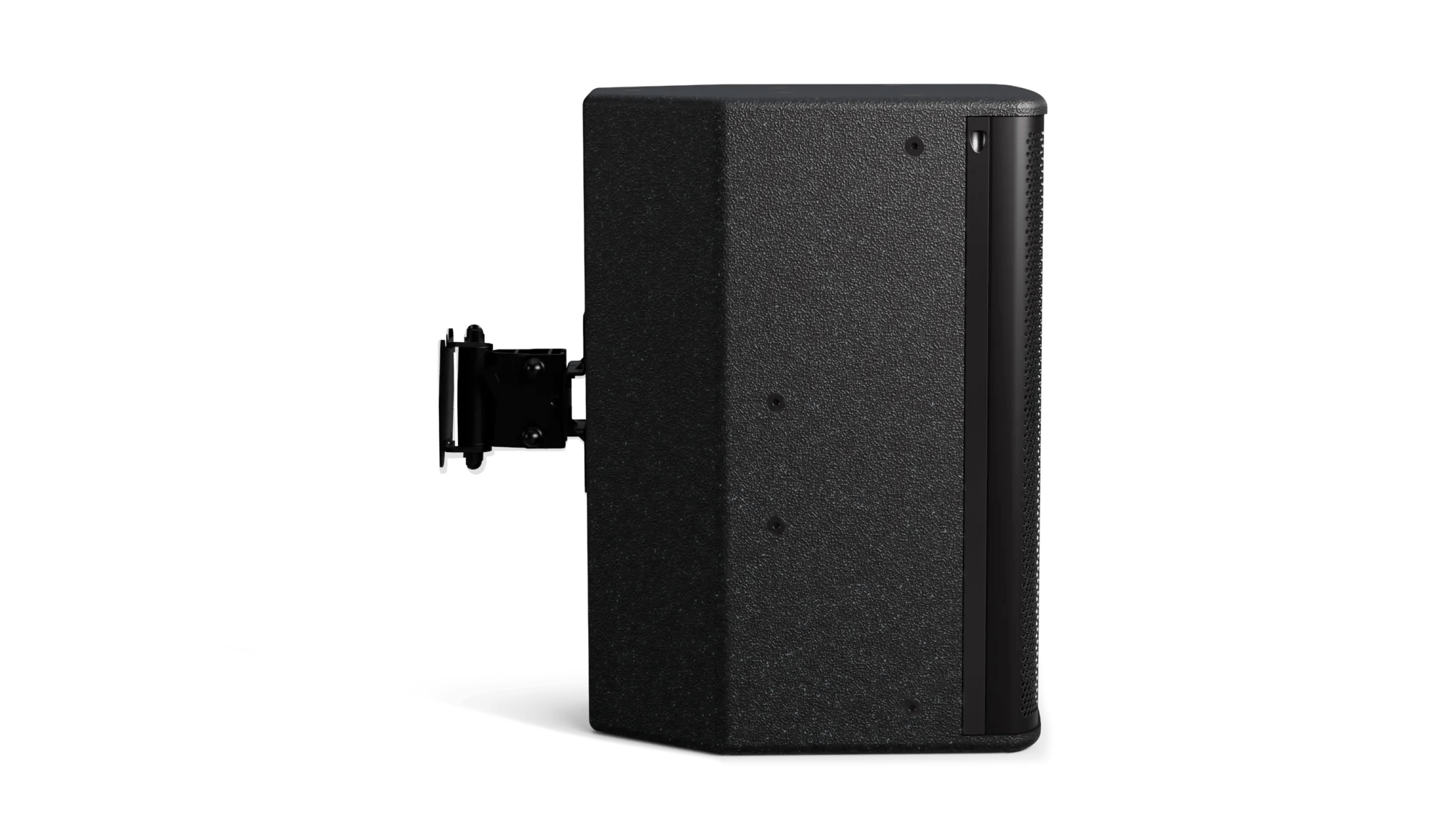

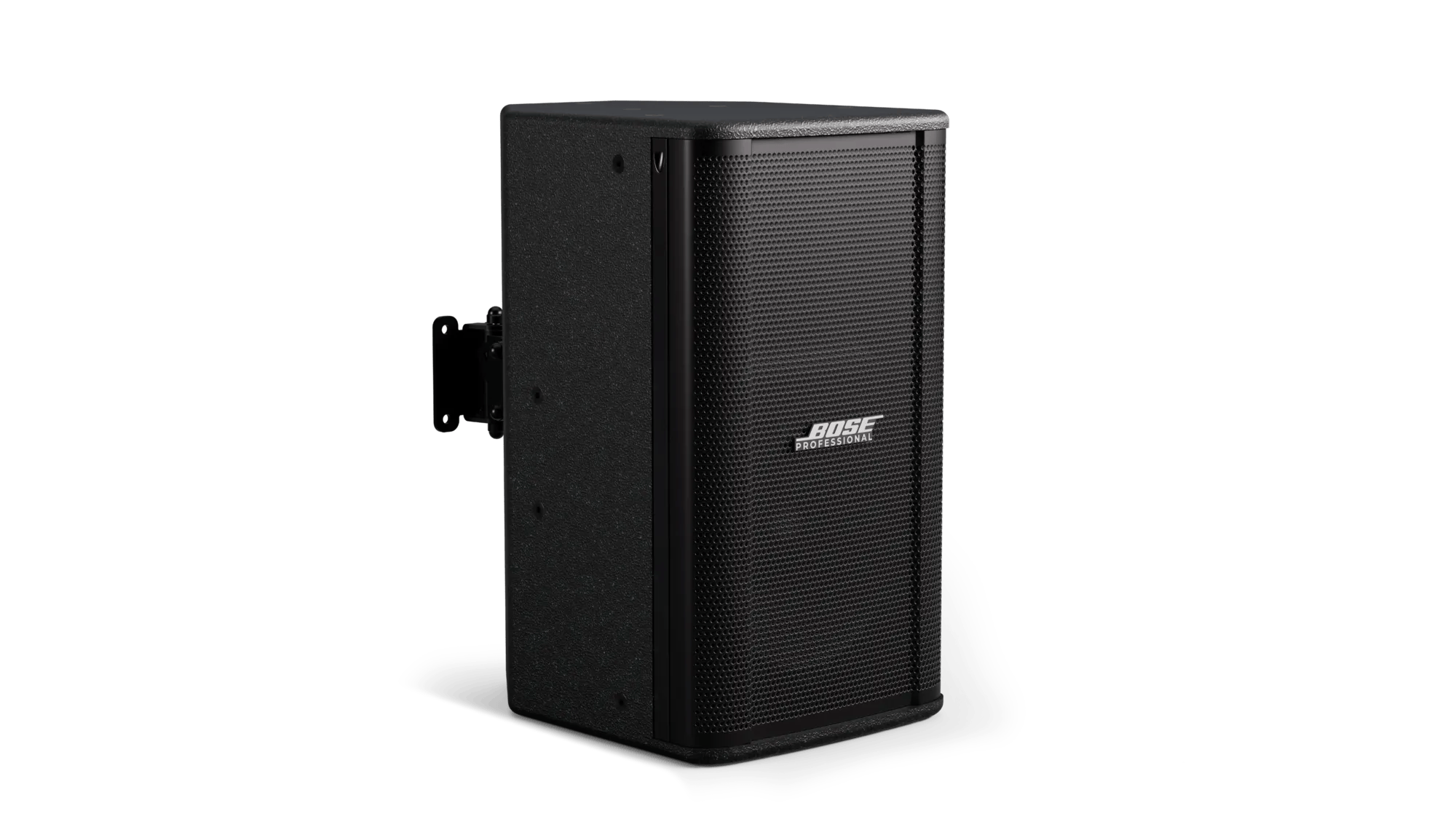

M8 threaded inserts and available pole-mount adapter or pan-and-tilt bracket give integrators options for permanent installation or flexible entertainment setups
Professional-grade materials and components support dependable performance in demanding commercial environments
Designed for a wide range of applications, including:
Colors
Black
Enclosure Material
15 mm plywood
Environmental
Indoors
Grille
Perforated steel, powder-coated finish
Suspension/Mounting
(14) M8 threaded inserts

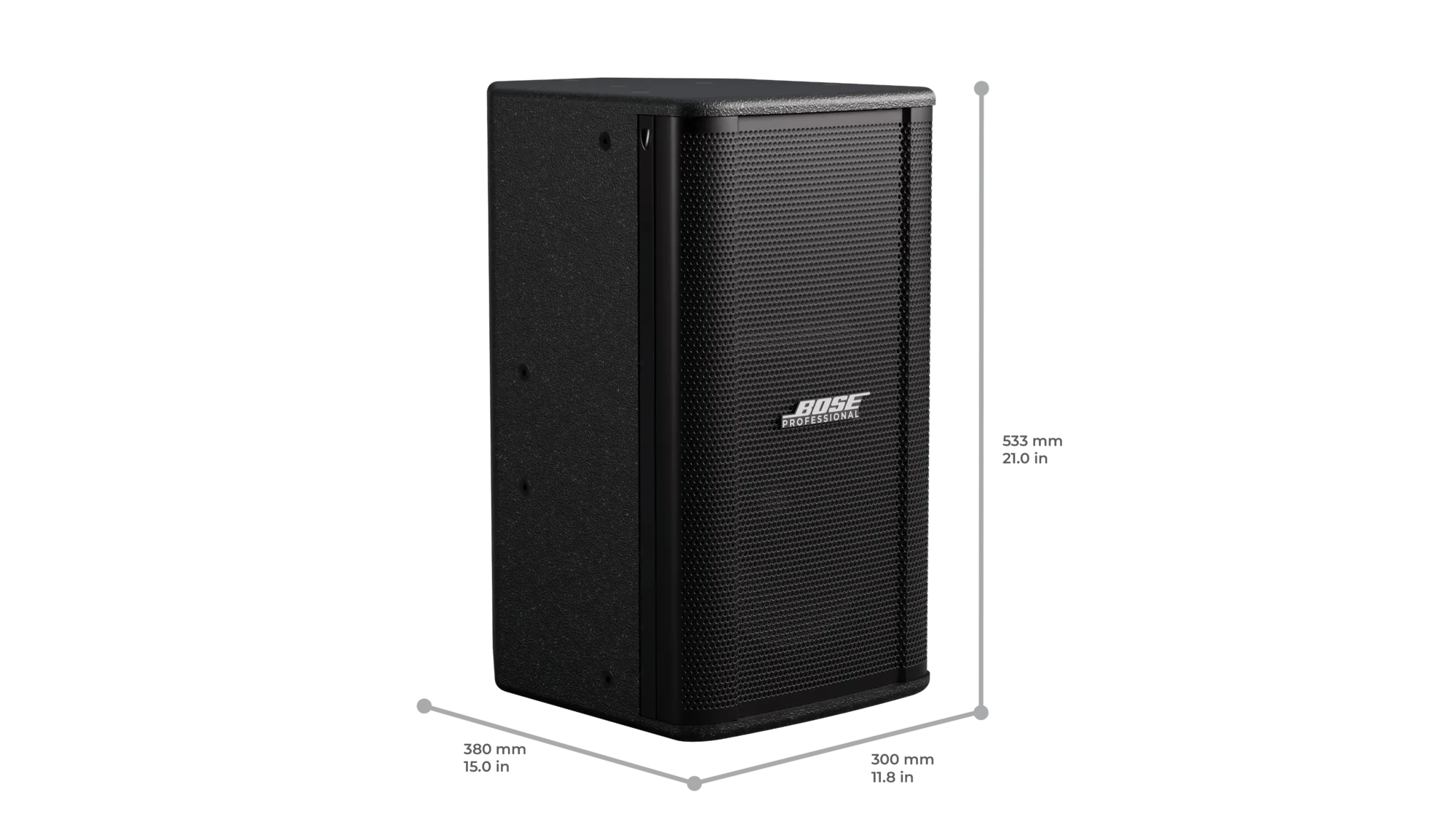

Product Dimensions (H×W×D)
533 mm x 300 mm x 380 mm (21.0 in x 11.8 in x 15.0 in)
Net Weight
18.7 kg (41.3 lb)
Shipping Weight
21.6 kg (47.6 lb)
Frequency Range (-10 dB)
50 Hz – 20,000 Hz
Coverage, Horizontal
90°
Calculated Maximum SPL @ 1 m
123 dB continuous, 129 dB peak
Nominal Impedance
8 Ω
Power Handling, long-term continuous
500 W
Power Handling, Peak
2000 W
Recommended Signal Processing
Use Bose Professional presets for optimal performance
Sensitivity (SPL/1 W at 1 m)
96 dB
Coverage, Vertical
60°
Crossover
1.9 kHz, passive internal crossover
High-Frequency

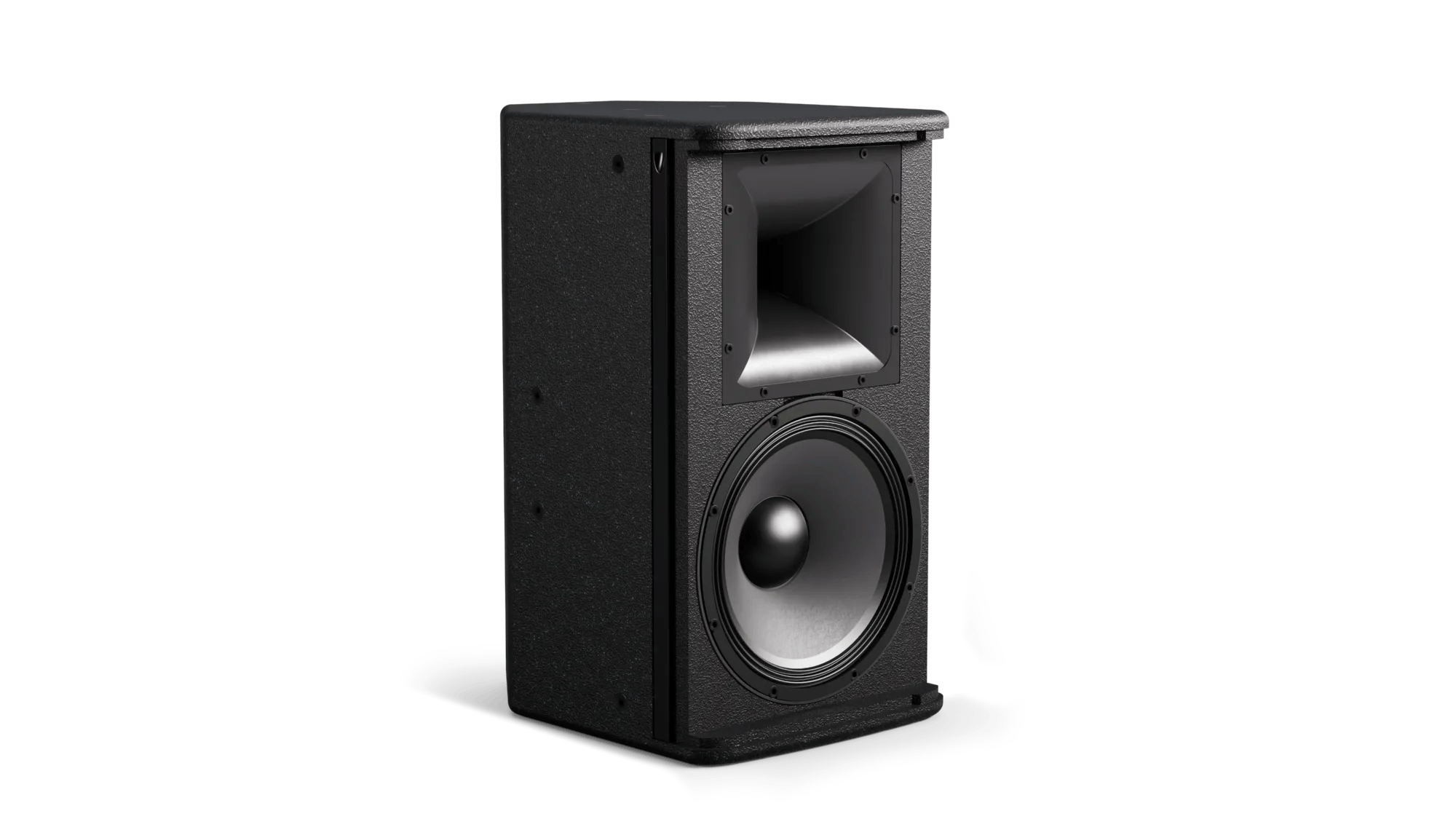

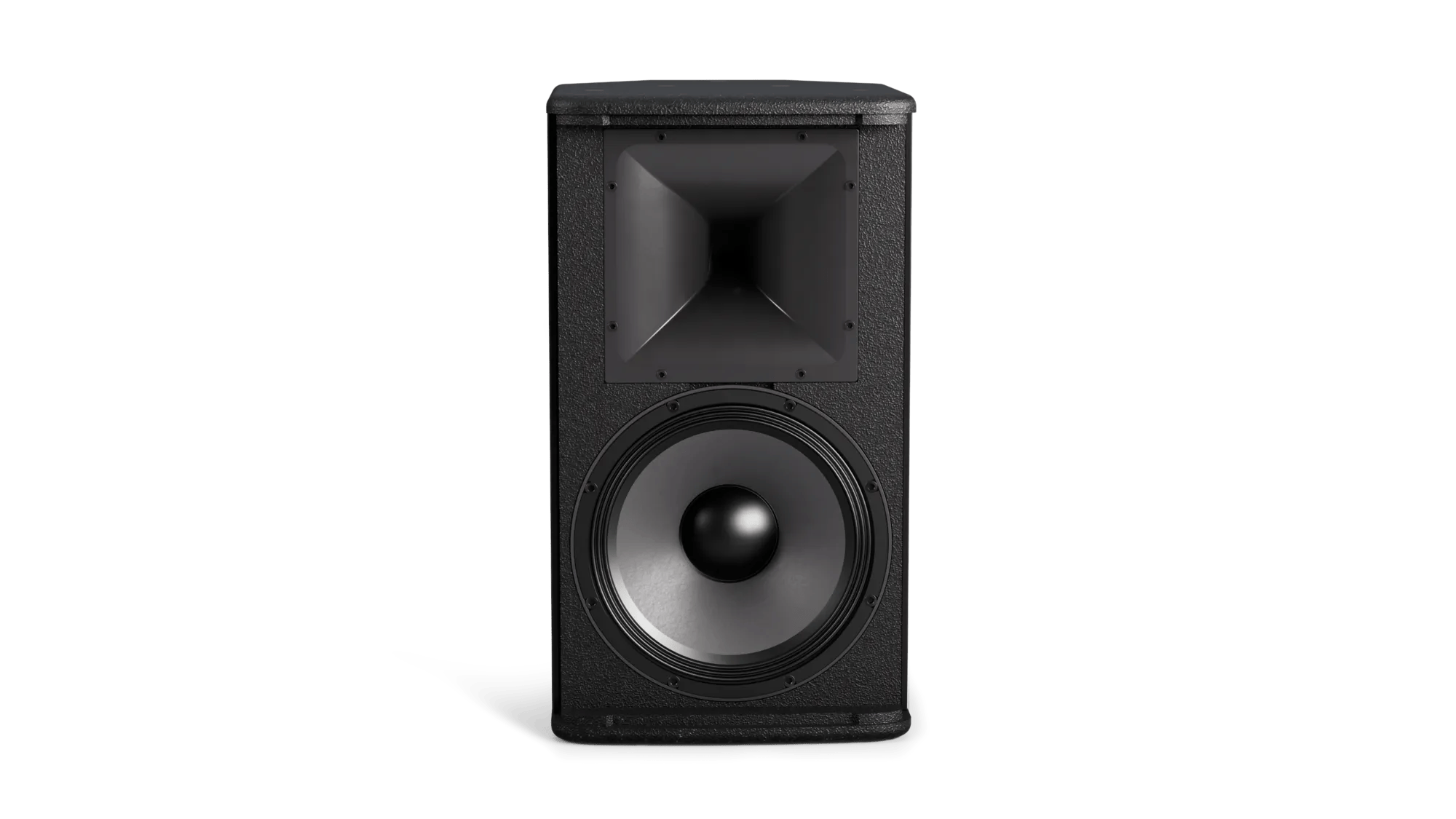

1 × Bose Professional EMB2S titanium-diaphragm, neodymium compression driver with 2-in (51 mm) voice coil
Low-Frequency
1 x 10-in (254 mm) ferrite woofer
(1) installation guide
(1) ShowTime SK10
