18-inch low-frequency driver delivers high-output bass for performance-driven installed sound systems
Installation-grade enclosure optimized for ground-stacked or permanent suspended installations
Outdoor-rated IP55 construction for use in exposed and partially exposed environments
Integrated suspension points enable flexible mounting to accommodate layout and sightline requirements

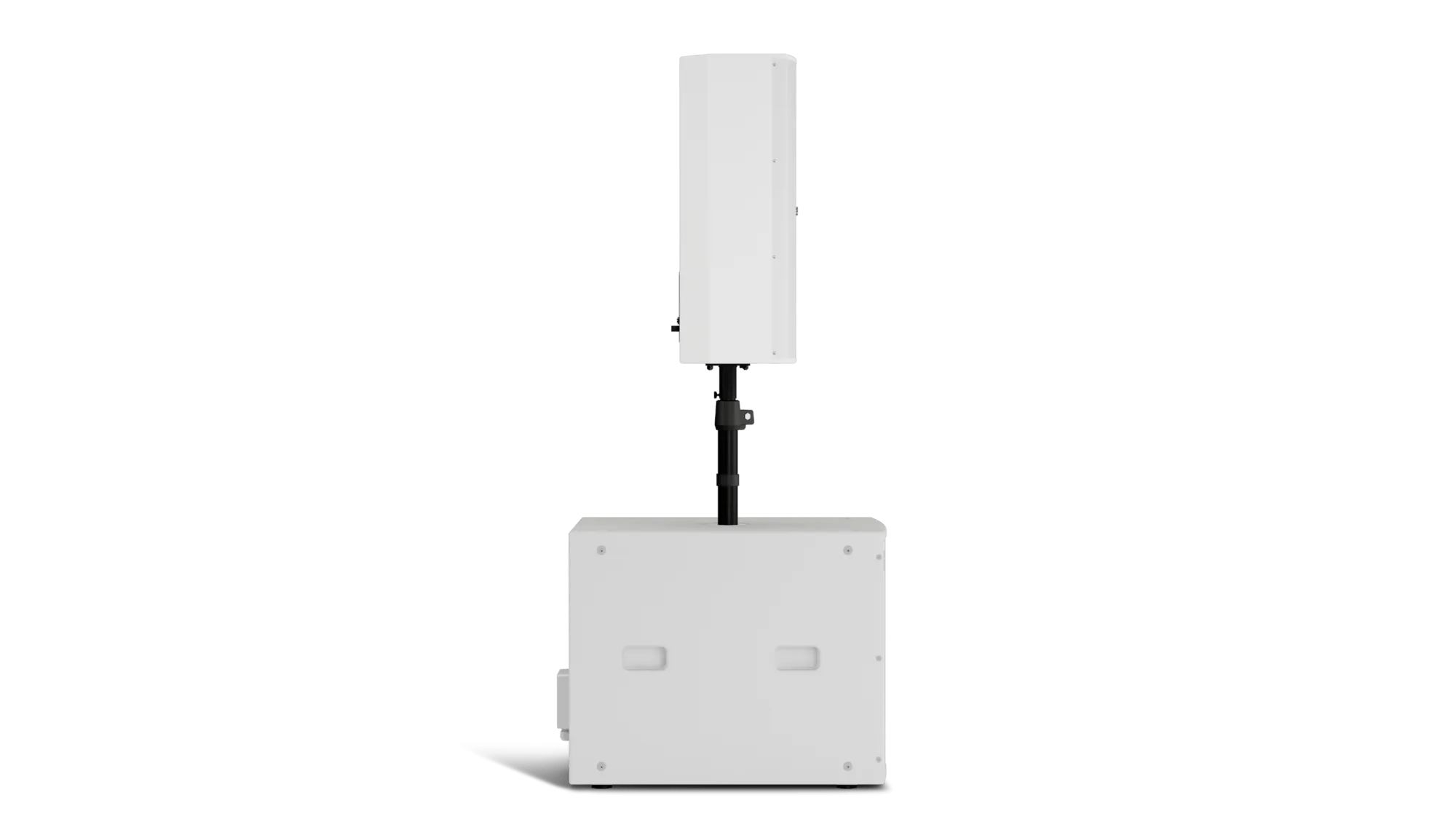

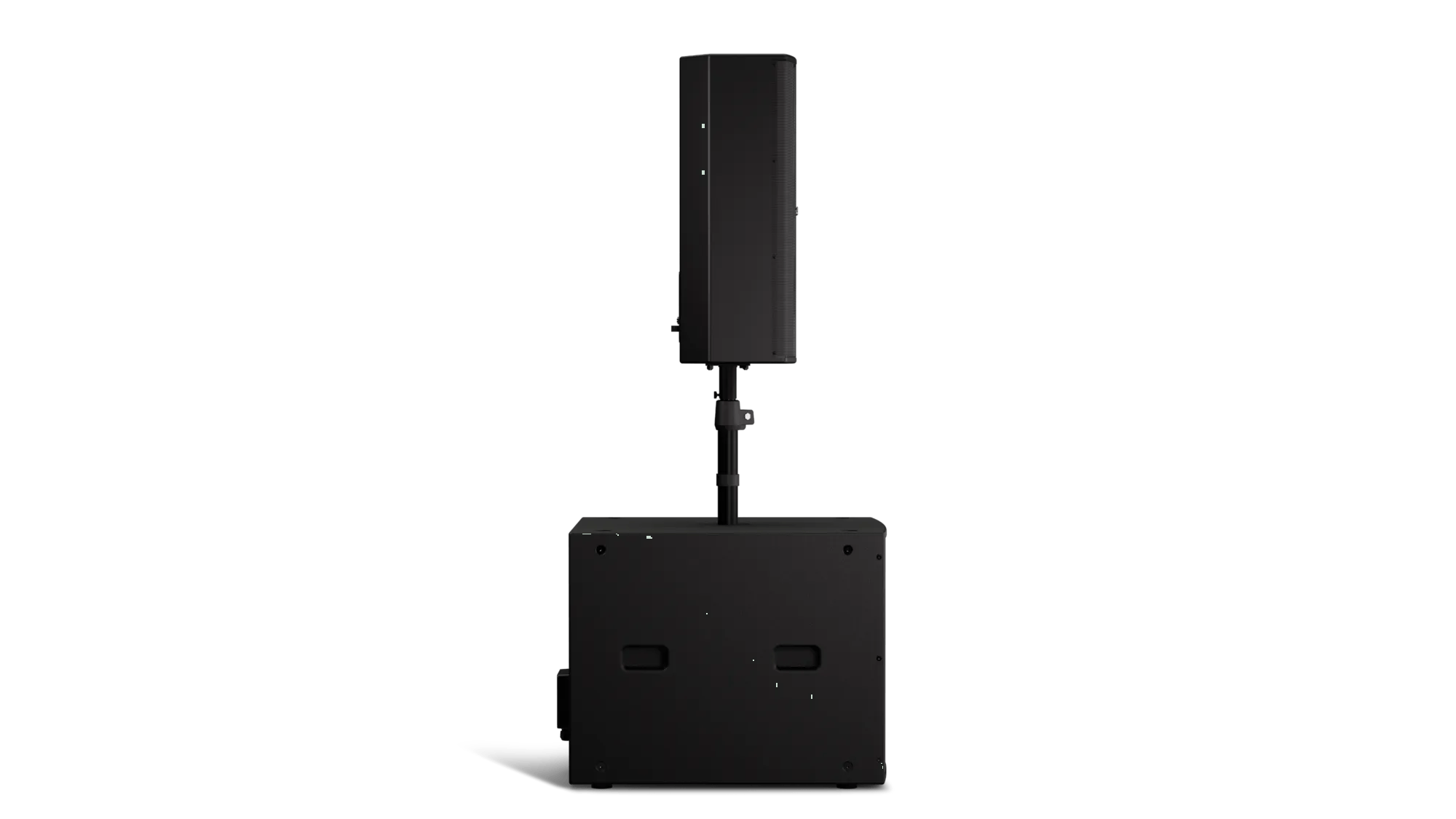

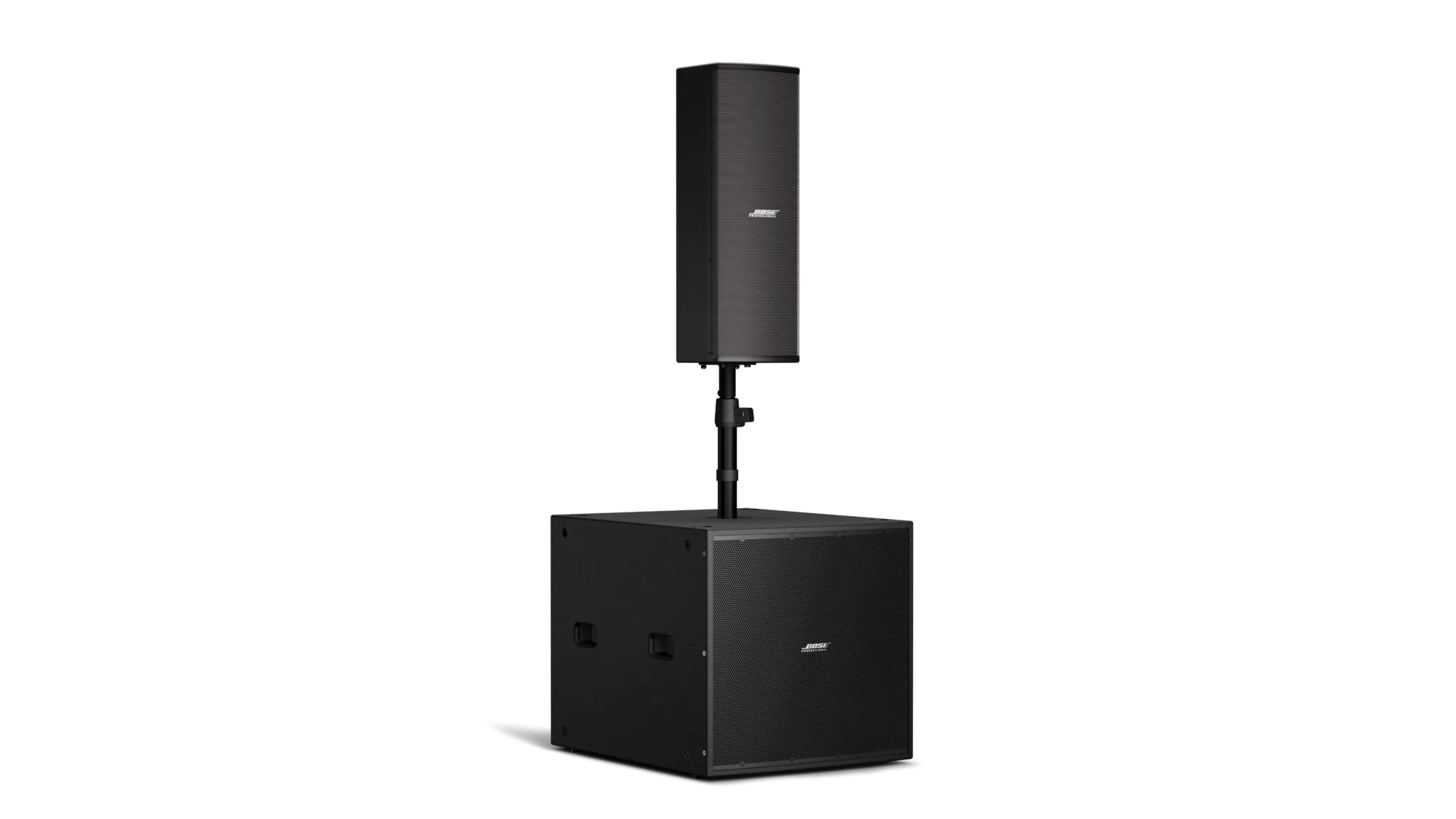

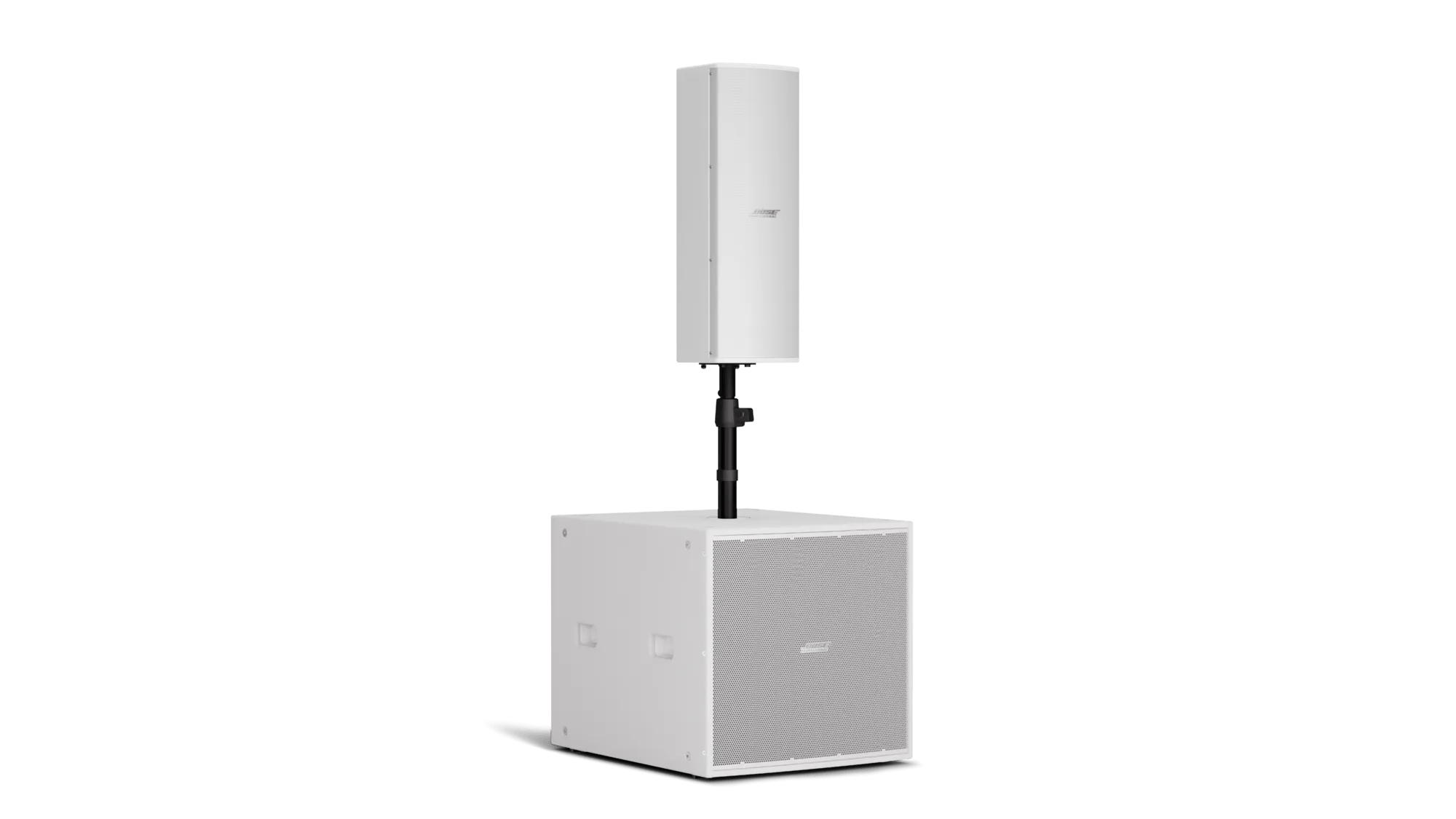

Universal pole cup supports both 35 mm poles and M20-threaded poles for secure loudspeaker mounting
Designed for seamless integration with Bose Professional AMU, AMM, and Forum loudspeaker systems
Designed for a wide range of applications, including:

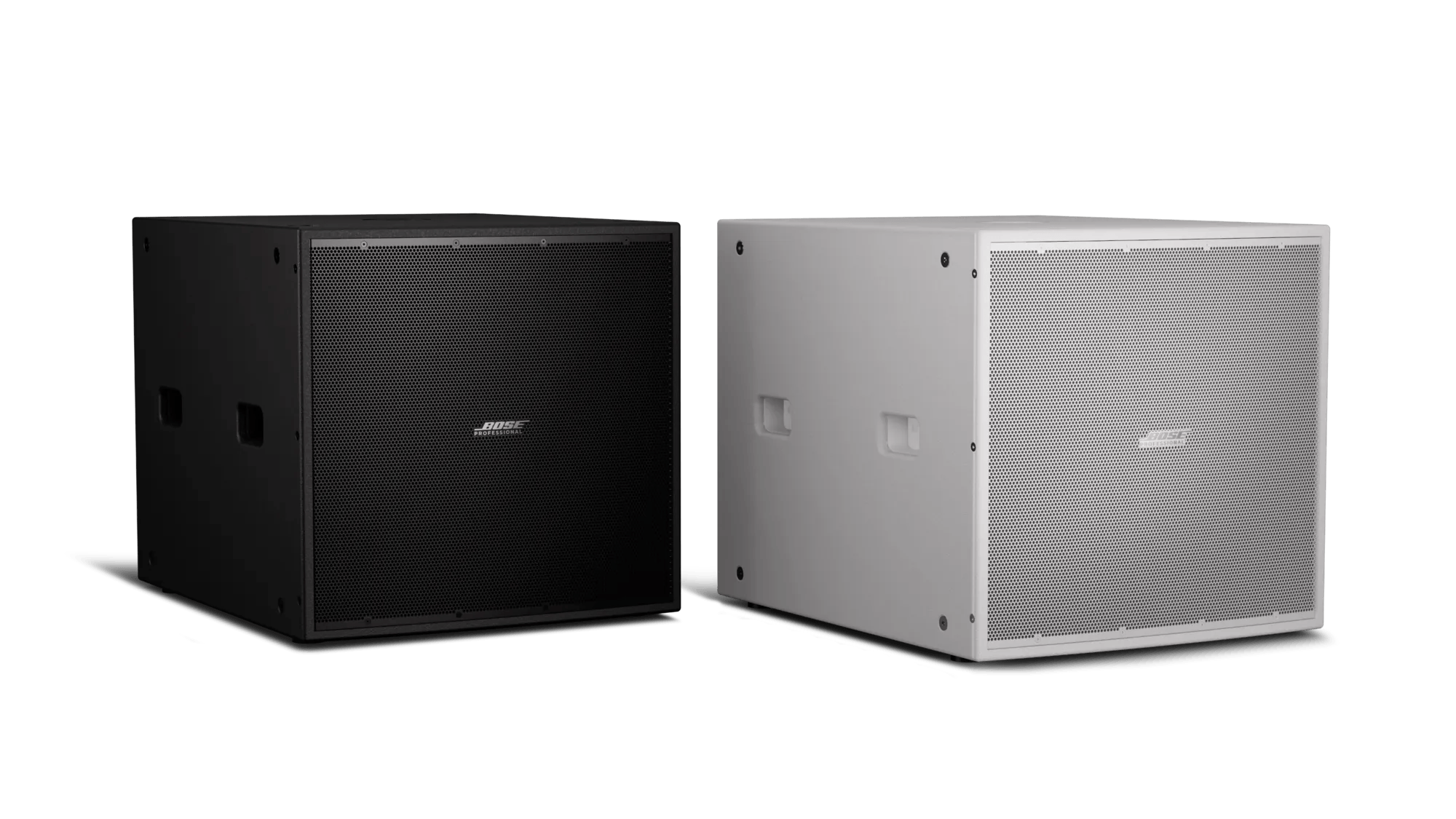

Colors
Black, white
Enclosure Material
Exterior-grade birch plywood
Environmental
Rated for direct-exposure outdoor installations (IEC 60529: IP55)

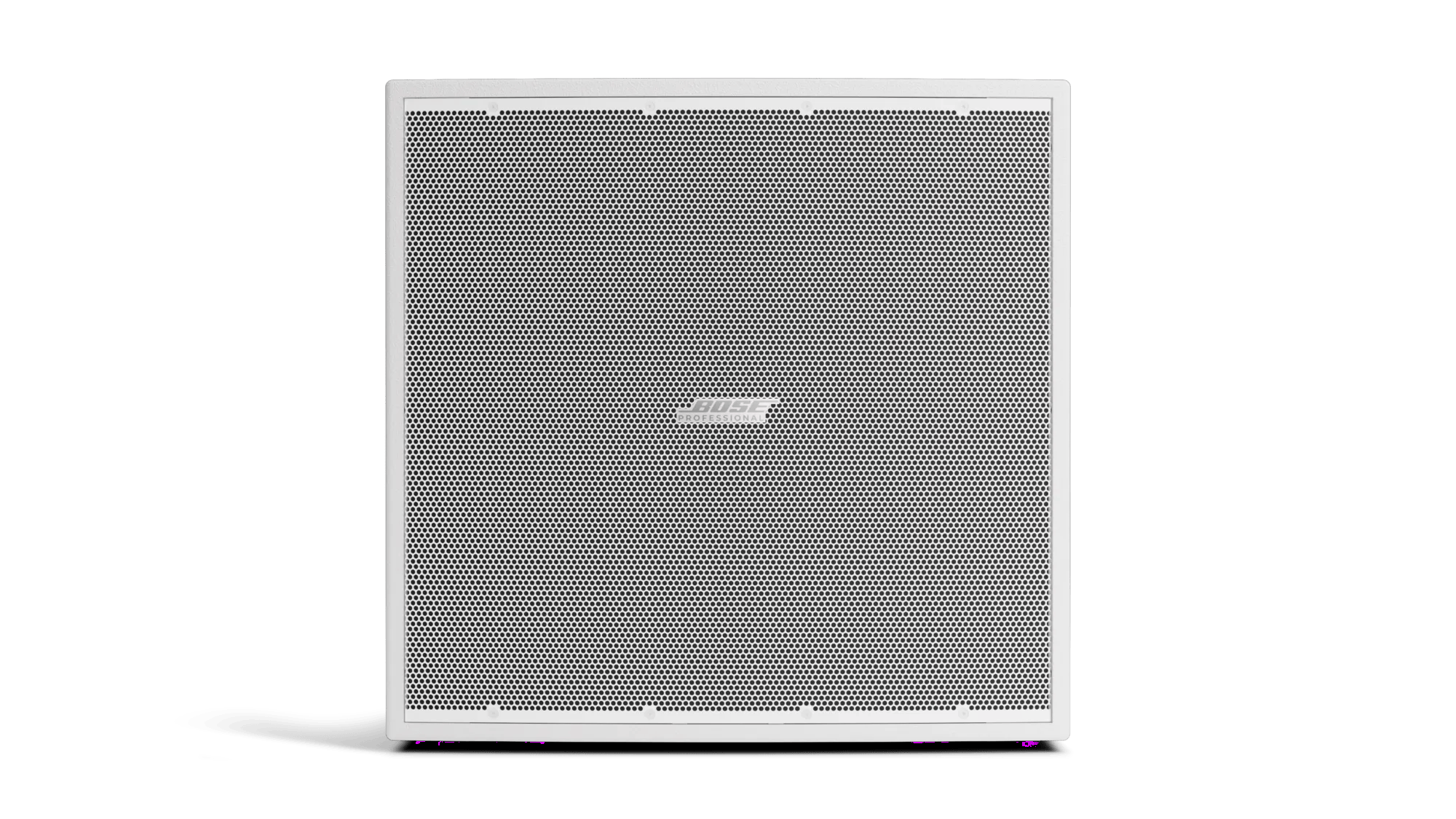

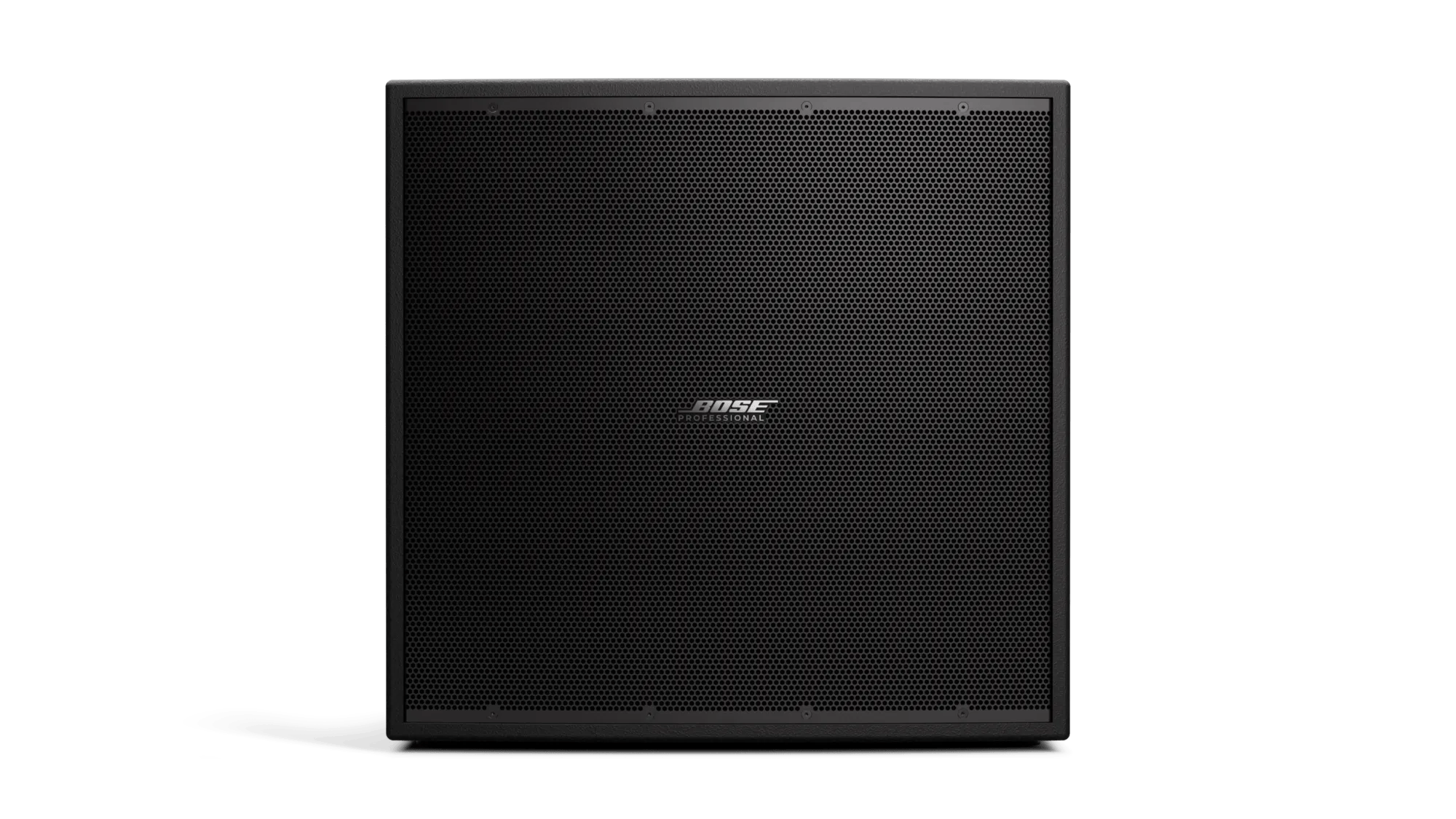

Grille
Powder-coated perforated stainless steel, paintable
Ingress Protection
IP55
Suspension/Mounting
(4) stainless-steel M10 attachment points (top panel), (1) pole cup for 35 mm or M20-threaded loudspeaker pole (top panel)

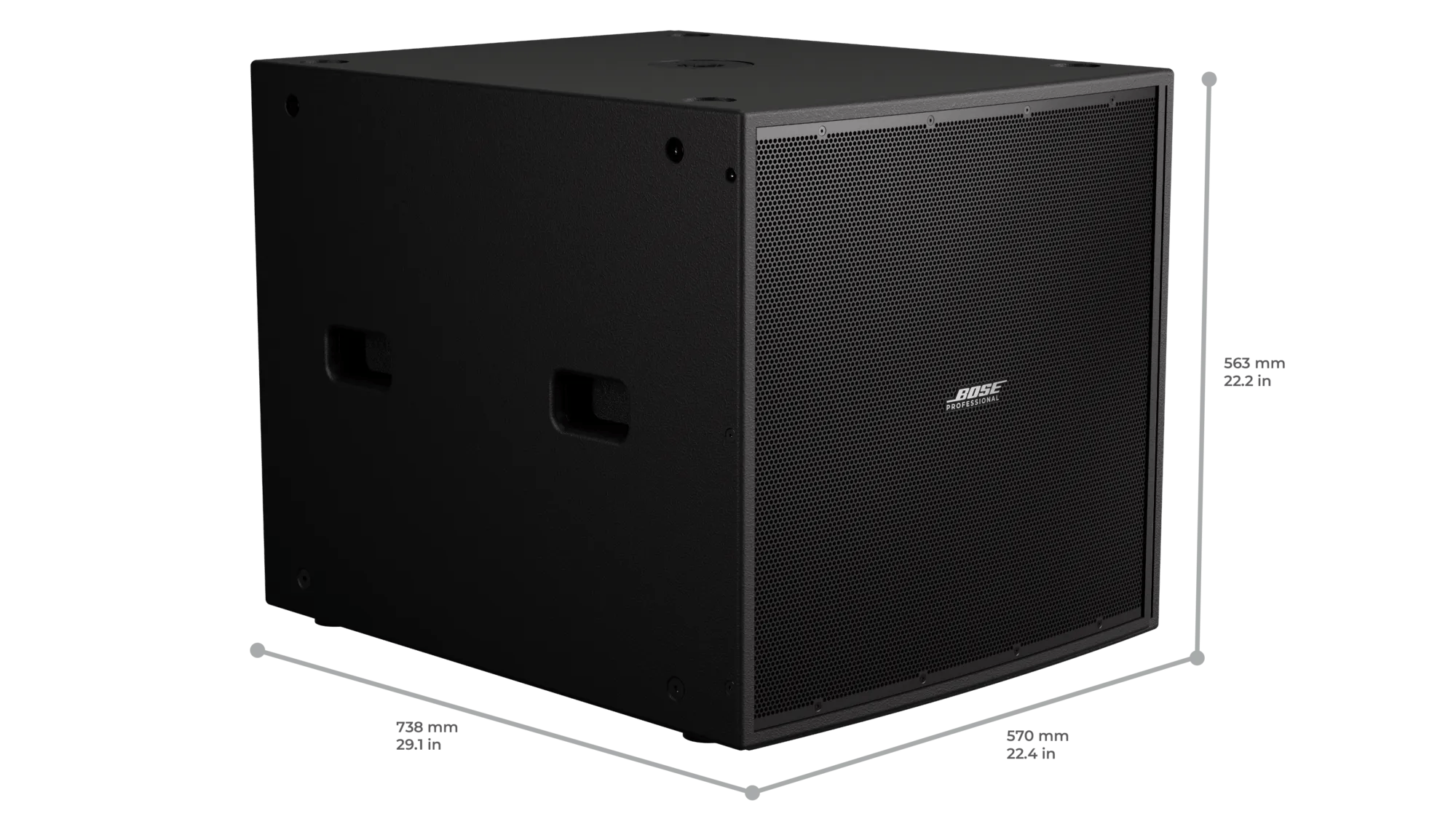

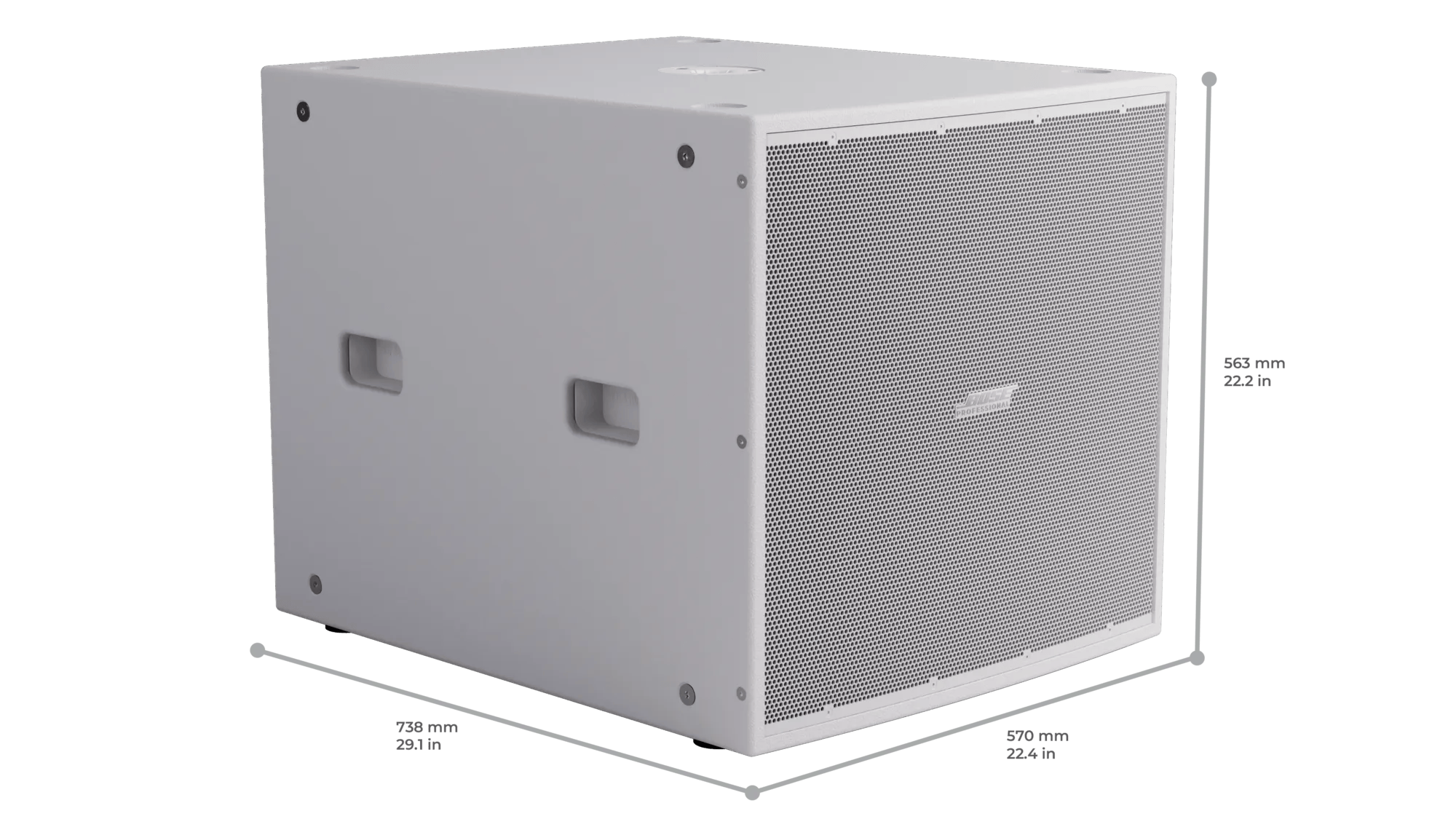

Product Dimensions (H×W×D)
563 mm × 570 mm × 738 mm (22.2 in × 22.4 in × 29.1 in)
Frequency Range (-10 dB)
29 Hz – 263 Hz
Coverage, Horizontal
Omnidirectional below 200 Hz
Calculated Maximum SPL @ 1 m
125 dB (free-field), 131 dB (half-space)
Nominal Impedance
8 Ω
Power Handling, Peak
3200W
Sensitivity (SPL/1 W at 1 m)
96 dB
Coverage, Vertical
Omnidirectional below 200 Hz
Crossover
80 Hz - 200 Hz, requires active crossover in DSP
Low-Frequency

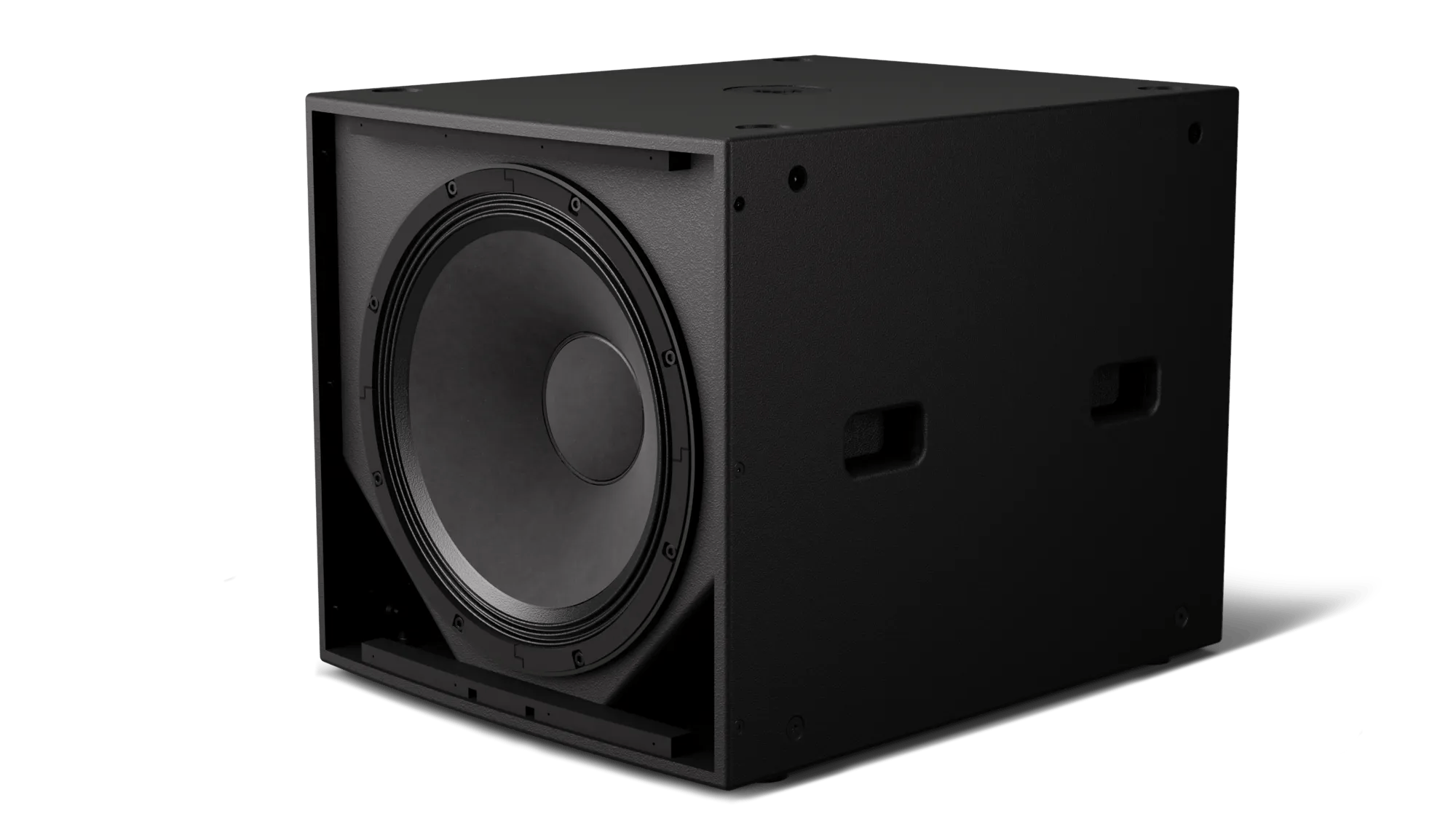

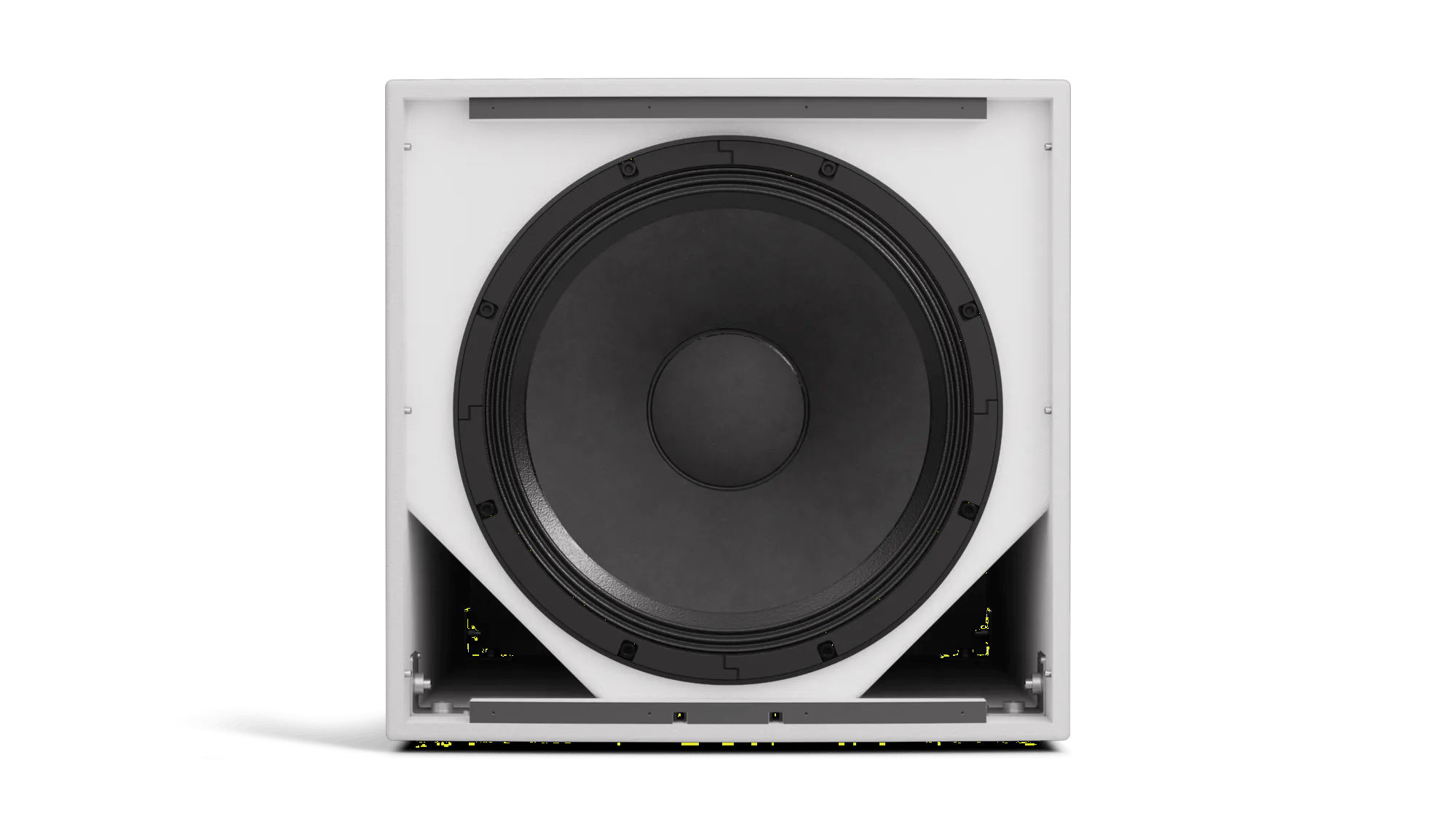

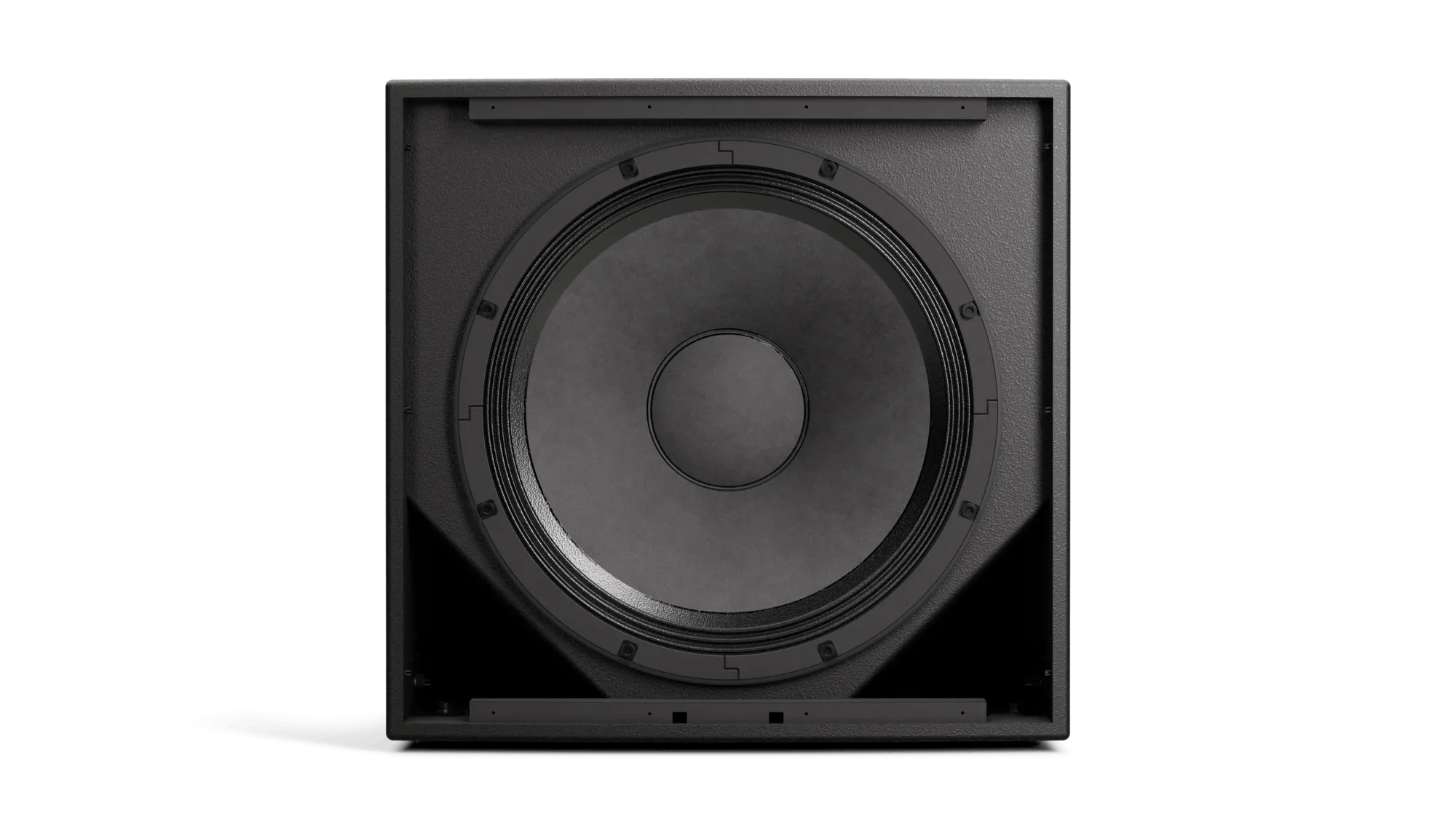

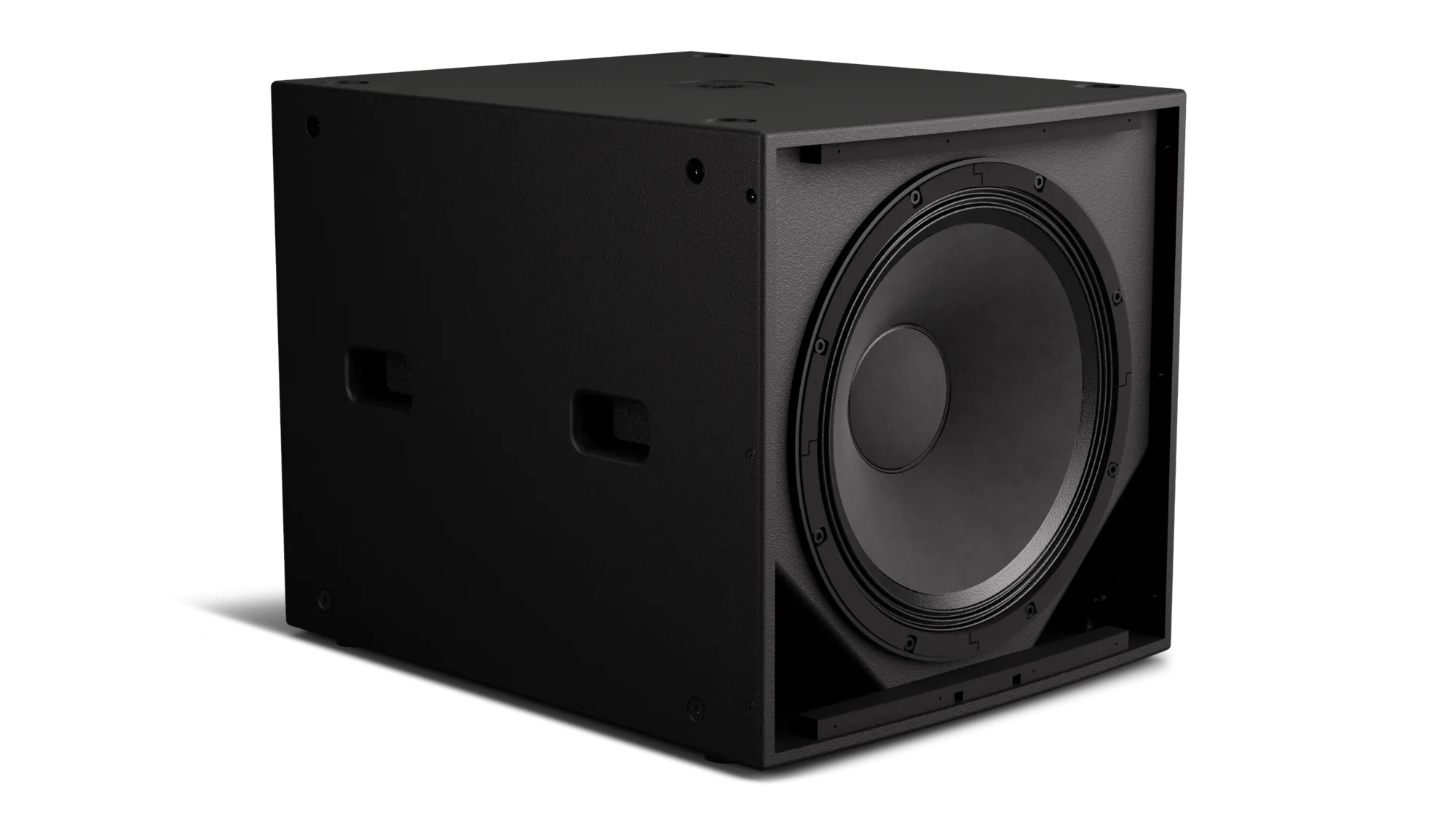

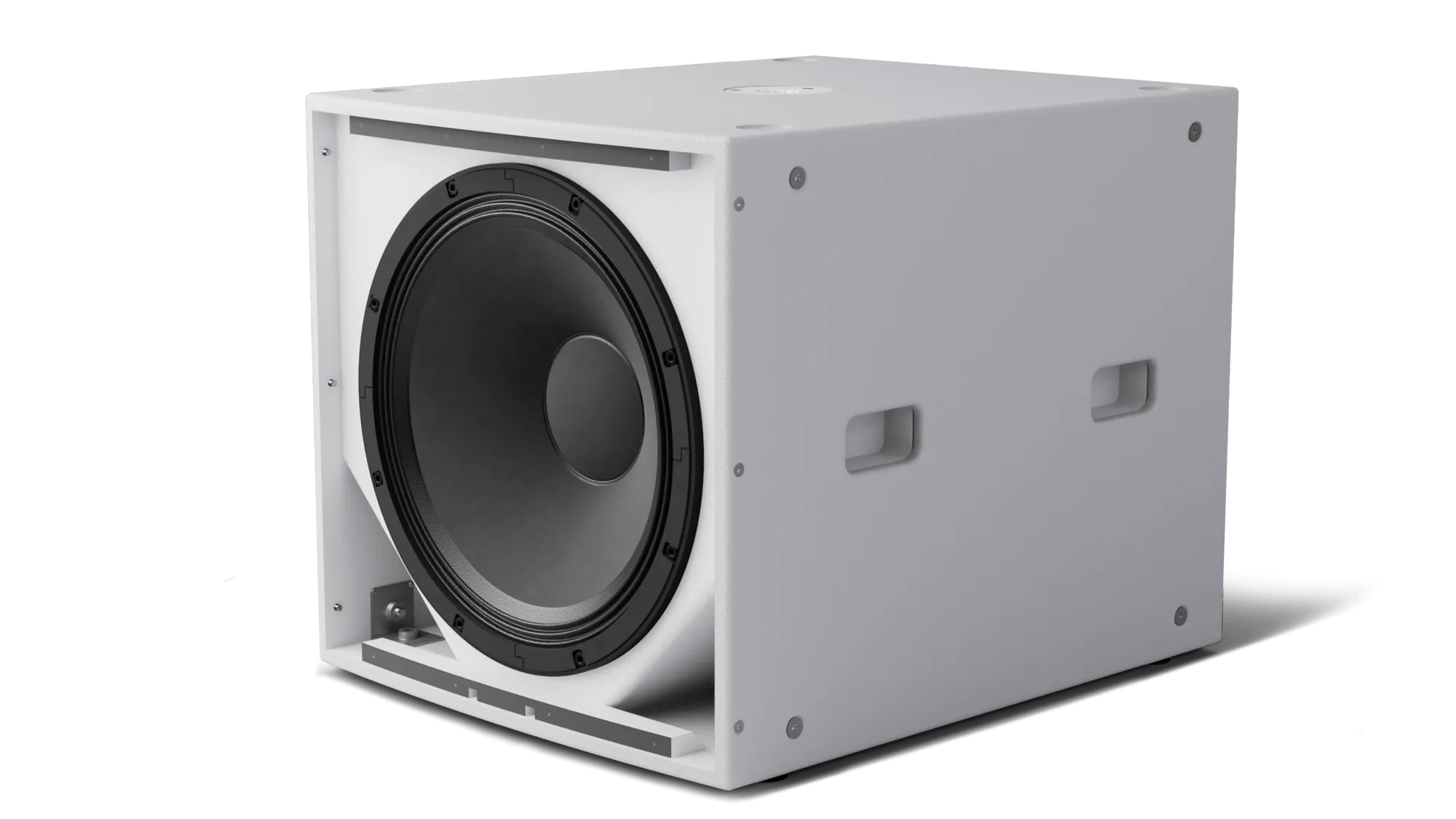

1 x 18.0-in (457 mm) high-excursion woofer
(1) ShowTime STS118E
(1) input cover with hardware
(1) installation guide
