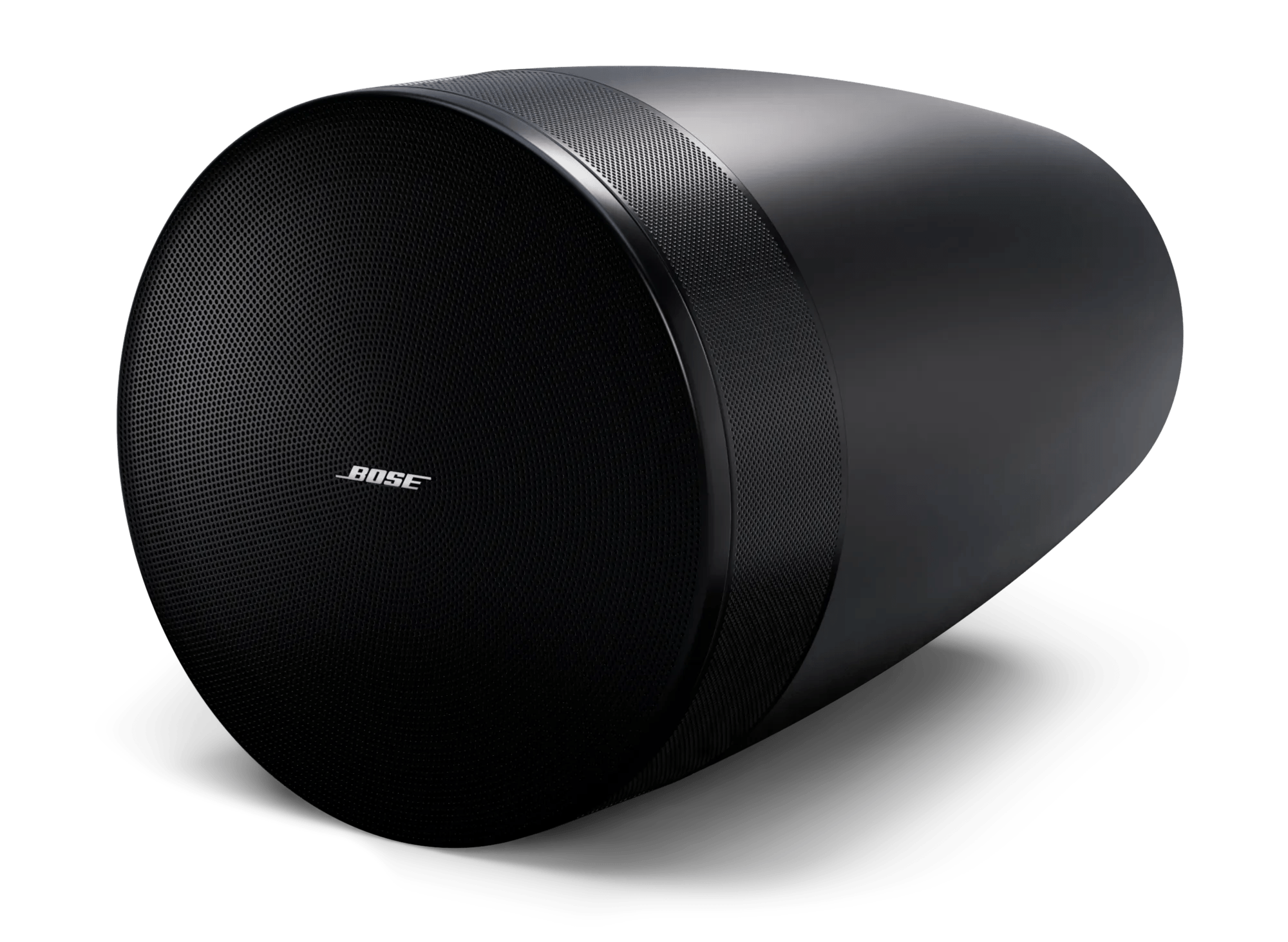

DesignMax Luna DML88P loudspeaker

DesignMax Luna DML88P loudspeaker

DML88P | DesignMax
TECHNICAL INFO
Facebook Twitter Linkedin
The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.

FEATURES

  • Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones

  • Integrated 8” woofer extends down to 40 Hz—no subs needed

  • Wide-throw 140° coverage reduces speaker count and installation costs

  • Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs

  • Streamlined design with concealed wiring and premium finish options

  • Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors

  • Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and breweries
  • Fitness clubs and studios
  • Amusement and recreation spaces
  • Education and gymnasiums

SPECS

Technical Specification

COMPLIANCE

  • Safety Agency Ratings

  • UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant

PHYSICAL

  • Colors

  • Black (similar to RAL 9005), white (similar to RAL 9003), paintable

  • Enclosure Material

  • Engineered plastics

  • Environmental

  • Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant

  • Grille

  • Perforated steel, powder-coated finish, paintable

  • Logo

  • Rotatable, removable

  • Suspension/Mounting

  • (1) 3-hole suspension cable attachment point

  • Product Dimensions (H×W×D)

  • 308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth

  • Net Weight

  • 10.0 kg (22.0 lb)

PERFORMANCE

  • Frequency Range (-10 dB)

  • 40 Hz – 20,000 Hz

  • Coverage, Horizontal

  • 140° conical

  • Calculated Maximum SPL @ 1 m

  • 107 dB

  • Nominal Impedance

  • 8 Ω (transformer bypass)

  • Power Handling, long-term continuous

  • 140 W

  • Power Handling, Peak

  • 560 W

  • Recommended Signal Processing

  • Not required, Bose Professional EQ voicing and SmartBass processing available

  • Sensitivity (SPL/1 W at 1 m)

  • 85 dB

  • Transformer Taps, 100V

  • 25 W, 50 W, 100 W, bypass

  • Transformer Taps, 70V

  • 12 W, 25 W, 50 W, 100 W, bypass

TRANSDUCERS

  • High-Frequency

  • 8 × 2.0-in (51 mm) drivers in circular array Low-Frequency

  • Low-Frequency

  • 1 × 8 in (203 mm) woofer

Product codes

  • 892117-0100
  • DESIGNMAX DML88P BLK
  • 892117-0200
  • DESIGNMAX DML88P WHT

Included in Packaging

  • (1) DesignMax Luna DML88P

  • (1) connection panel cover

  • (1) adjustable suspension cable system

  • (4) cable ties

  • (1) installation guide
